We design and build pellet screening and cleaning systems which ensure the product is pristine and recover materials which can be reused in the production cycle.

VIV series

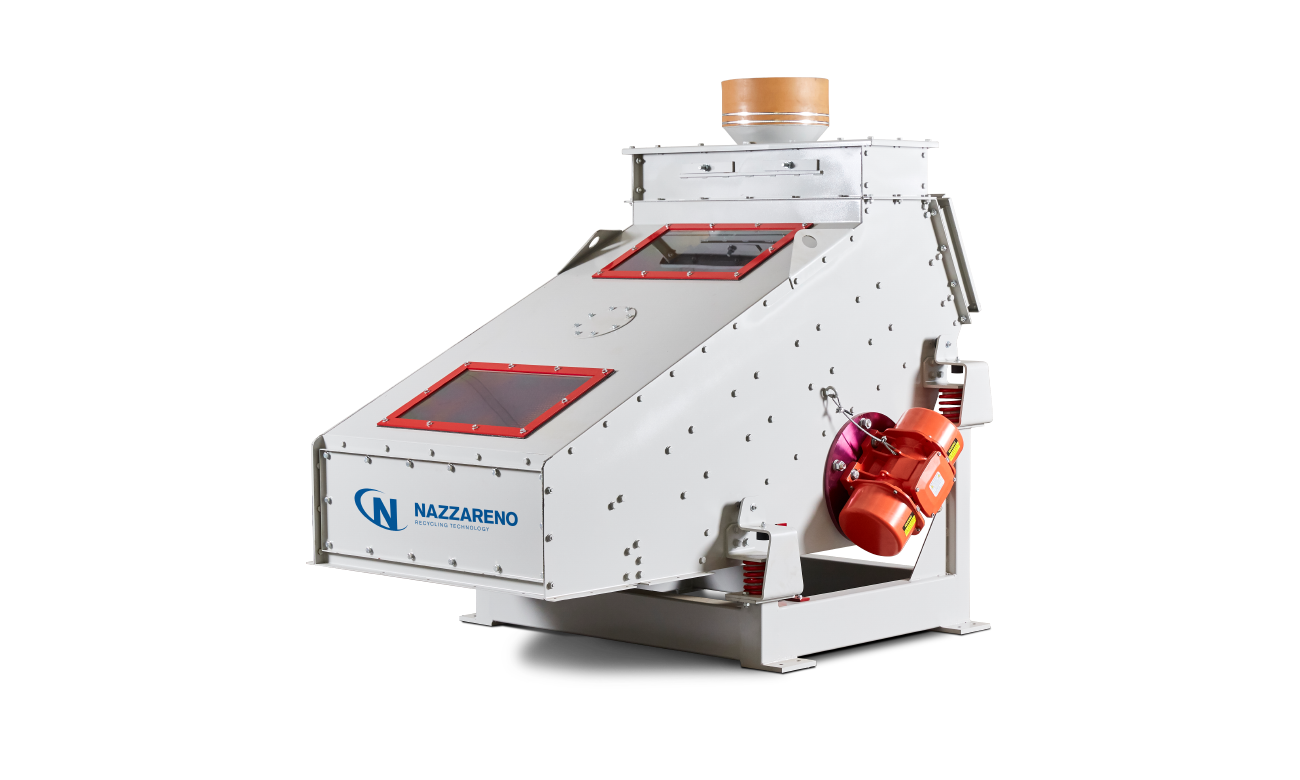

IVIV series vibrating screens are used to separate the dust contained in the pellets following production.

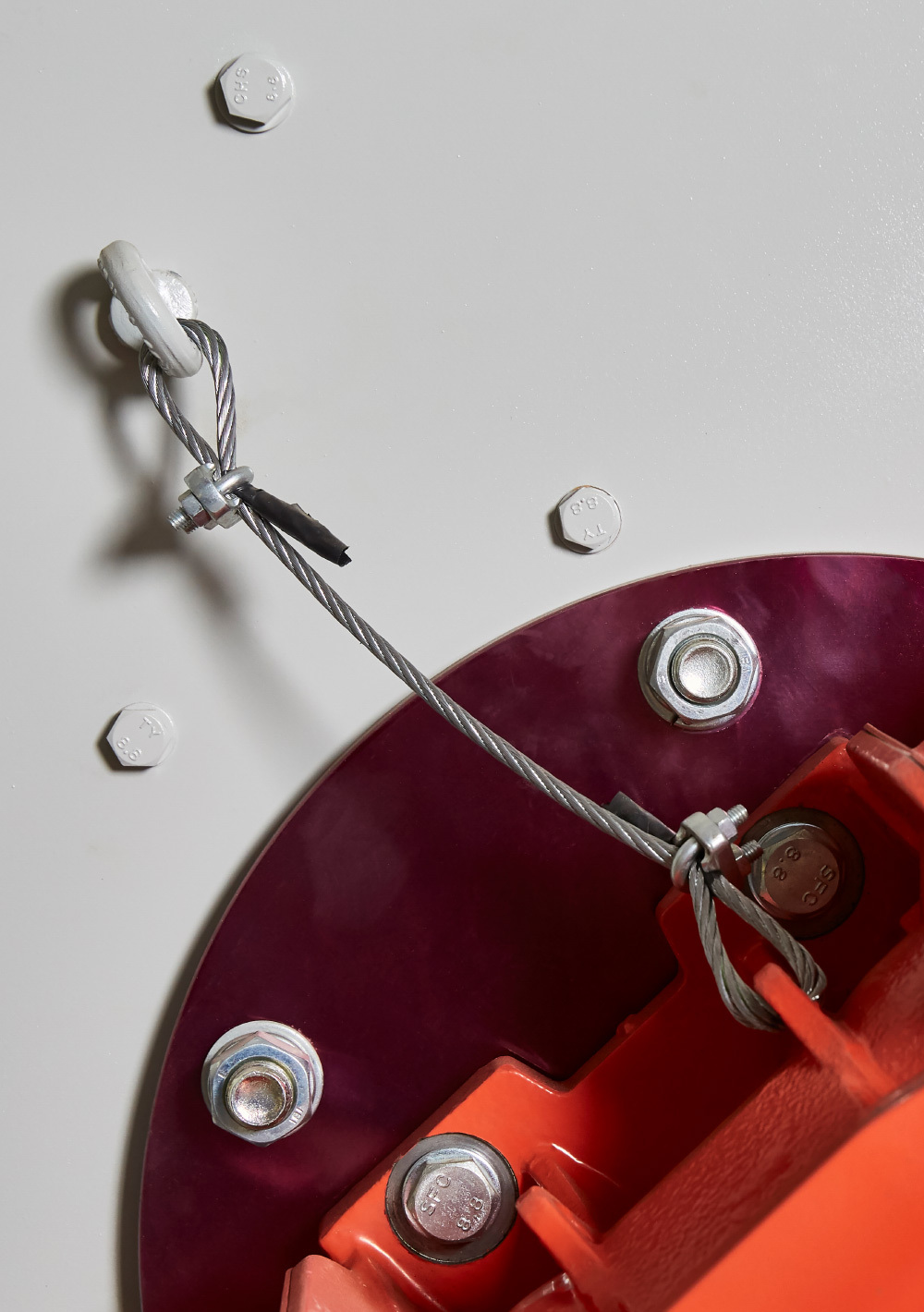

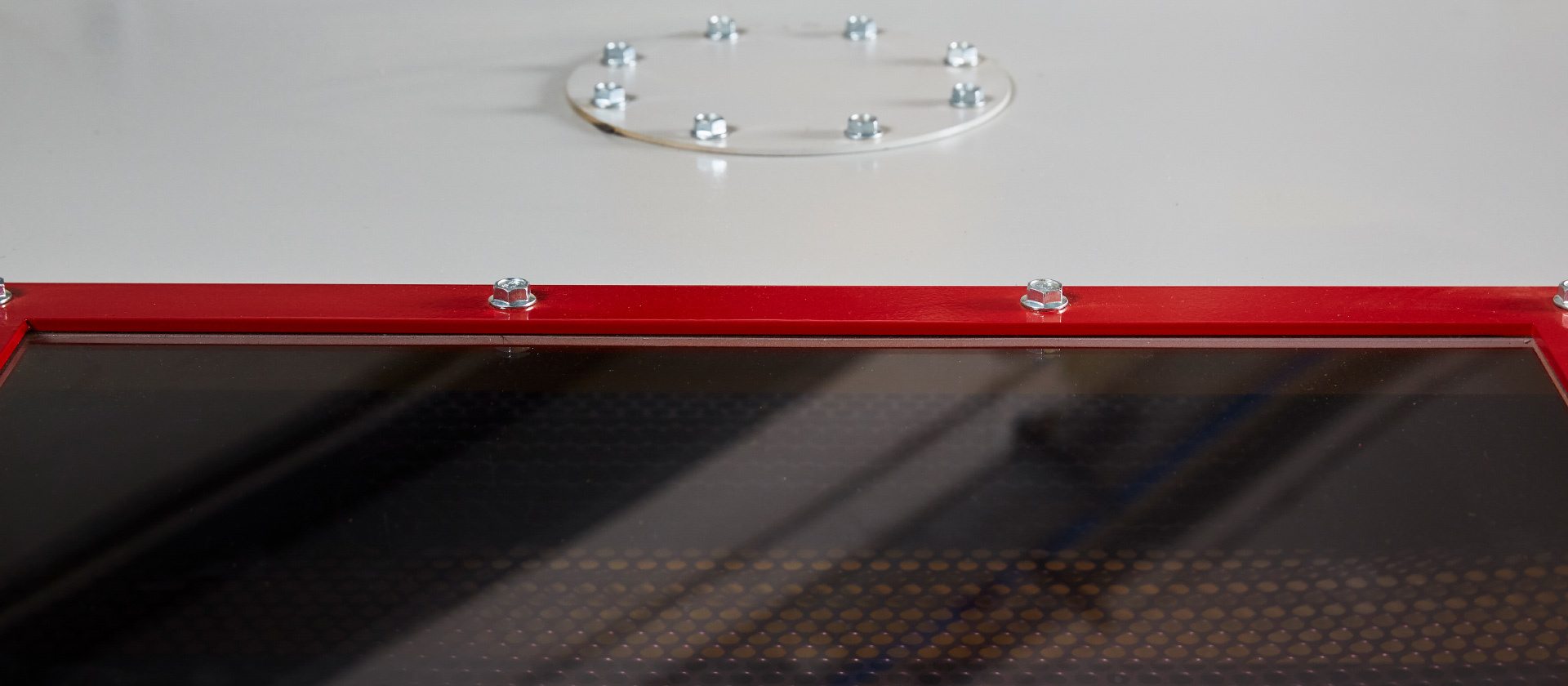

These are highly efficient machines comprised of a tilted surface installed on spring shock absorbers driven by 1 or 2 (based on the machine size) vibrating motors, of a screening grille that can be easily replaced, fitted with unloading chute, a flat dust collection base with conveyor hopper and connection to the extraction system.

VRT series

Rotary sieves in the VRT series are used to separate dust from pellets prior to packaging. The largest model reaches screening capacities of up to 50 Ton/h.

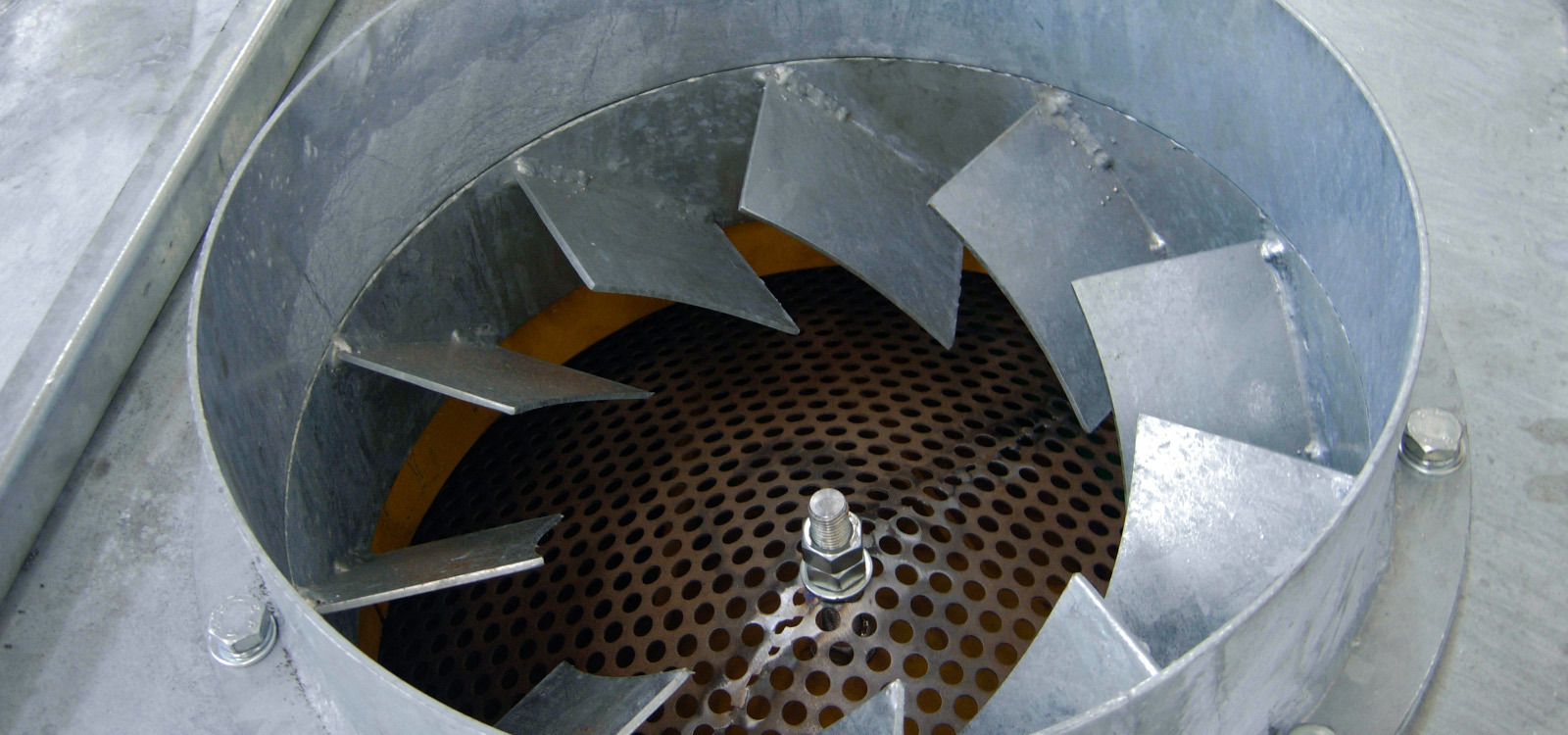

These are very sturdy and efficient machines built with a cylindrical form with central loading and side unloading, replaceable rotating screen mesh driven by a gear motor, flat bottom with scraper blade for dust extraction and pellet unloading.

Technical specifications

Models	VIV 1 600	VIV 2 600	VIV 2 1000	VRT 8	VRT 50
Capacity (t/h)	up to 1.5	up to 3	up to 8	up to 8	from 30 to 50
Screening type	vibrating	vibrating	vibrating	rotating	rotating
Screening step	1	2	2	1	1
Motor (kW)	0,5	0,68	0,68 + 0,68	1,5	2,2
Dimensions (cm)	1980 x 965 x 1700	1980 x 965 x 1700	1980 x 1450 x 1730	1590 x 1820 x 590	1940 x 2375 x 880
Weight (kg)	670	670	800	590	870

Scroll the table
